Designed for modern indoor environments, the LED Totem is a premium digital signage solution powered by advanced Direct View LED technology. It delivers exceptional brightness, vivid colors, and seamless visuals, making it ideal for high-traffic commercial spaces such as retail stores, restaurants, hotels, and showrooms.
With its ultra-slim and elegant design, the totem integrates effortlessly into any interior while maintaining a strong visual presence. The high brightness level ensures clear visibility even under strong ambient light, while the fine pixel pitch provides crystal-clear image quality, even at close viewing distances.
Equipped with an integrated Android system, Wi-Fi connectivity, and remote management capabilities, it enables easy content control and real-time updates. Its modular structure also allows multiple units to be combined into large video walls, expanding your communication impact.
Built for 24/7 commercial use with up to 100,000 hours of LED lifespan, the LED Totem offers a reliable, scalable, and visually powerful solution for modern digital communication.
In today’s fast-paced retail, hospitality, and corporate environments, traditional LCD displays and static signage often fail to deliver the visual impact required to capture attention. Limited brightness, visible bezels, and insufficient image clarity reduce the effectiveness of communication—especially in well-lit or high-traffic areas.
Additionally, many systems lack flexibility, making it difficult to scale content across multiple screens or create immersive visual experiences. Content management can become complex without integrated systems, leading to inefficiencies and inconsistent messaging.
Businesses need a brighter, more seamless, and scalable digital display solution to effectively engage their audience and elevate their brand presence.
LED Totem transforms any indoor space into a dynamic communication platform with its high brightness, seamless visuals, and modular flexibility. It enables businesses to deliver powerful and engaging content while enhancing brand visibility and customer experience.
LED Totem delivers powerful, bright, and seamless visuals, making it ideal for dynamic and high-traffic environments.

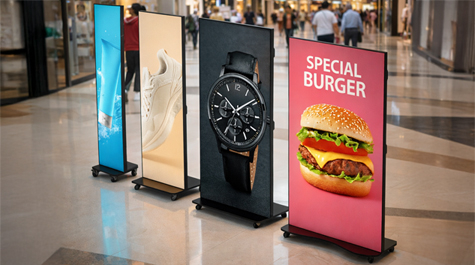

Highlight promotions and attract attention
Display menus and campaigns dynamically

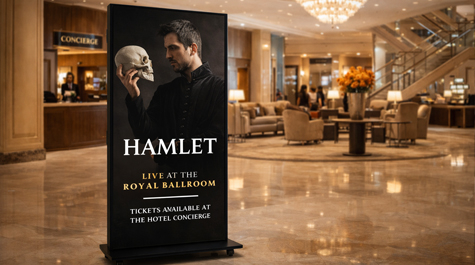

Share information in lobbies and receptions
Visible even under strong lighting conditions
No bezels for uninterrupted visuals
Portable and adaptable design
Compare models and choose the best fit for your space.
| Category | Feature | 77" LED Poster | 80" LED Poster | 85" LED Poster | 91" LED Poster | Notes |
|---|---|---|---|---|---|---|
| LED Screen | Screen Size | 77" | 80" | 85" | 91" | inch |
| Screen Area (W×H mm) | 320 × 1920 | 640 × 1920 | 960 × 1920 | 1280 × 1920 | mm | |
| Resolution (px) | 288 × 1248 | 416 × 1248 | 624 × 1248 | 832 × 1248 | pixel | |
| Pixel Pitch (mm) | P1.53 | P1.53 | P1.53 | P1.53 | mm | |
| LED Type | SMD1212 | SMD1515 | SMD1212 | SMD1212 | ||
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | ||
| Brightness | 800 cd/m² | 800 cd/m² | 800 cd/m² | 800 cd/m² | ||
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | ||
| Viewing Angle - Horizontal | 156° | 156° | 156° | 150° | ||
| Viewing Angle - Vertical | 140° | 140° | 140° | 140° | ||
| Gray Scale | 14–16 bit (RGB per channel) | 14–16 bit (RGB per channel) | 14–16 bit (RGB per channel) | 14–16 bit (RGB per channel) | ||
| Frame Rate | 60 fps | 60 fps | 60 fps | 60 fps | ||
| Mechanical | Cabinet Dimensions (W×H×D mm) | 320 × 2610 × 460 | 640 × 2610 × 460 | 960 × 2610 × 460 | 1280 × 2910 × 460 | Includes base plate depth |
| Net Weight (kg) | 40 | 80 | 120 | 160 | ||
| Power | Input Voltage | AC 100-240V (+/-10%) 50/60 Hz | AC 100-240V (+/-10%) 50/60 Hz | AC 100-240V (+/-10%) 50/60 Hz | AC 100-240V (+/-10%) 50/60 Hz | |
| Average Power Consumption (W) | 90 | 180 | 270 | 360 | Watt | |
| Environment | Operating Temperature | -10°C ~ +60°C | -10°C ~ +60°C | -10°C ~ +60°C | -10°C ~ +60°C | |
| Operating Humidity | %10 ~ 65 | %10 ~ 65 | %10 ~ 65 | %10 ~ 65 | ||
| Computer | Operating System | Android OS | - | - | - | Built-in on 77" model |
| Processor (CPU) | Rockchip, Quad-core, 2.6GHz & above | - | - | - | ||
| Internal Storage | 16GB / 32GB (optional) | - | - | - | ||
| RAM | 2GB / 4GB (optional) | - | - | - | ||
| USB | USB3.0 (×2) | - | - | - | ||
| LAN | 10/100Mbps Ethernet | - | - | - | ||
| Wi-Fi | 802.11b/g/n | - | - | - | ||
| Package | Media Formats | Video: MPG, AVI, MP4, RM, RMVB, TS | - | - | - | |
| Included | Totem Frame, DV-LED Cabinets, DV-LED Controller | DV-LED Controller | DV-LED Controller | DV-LED Controller | ||
| Optional | Windows Player | Android / Windows Player | Android / Windows Player | Android / Windows Player | ||
| Warranty | Warranty Period | 2 Years | 2 Years | 2 Years | 2 Years | |
| MTBF (Mean Time Between Failures) | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
Common questions about LED Totem features, setup, and usage
LED Totem uses Direct View LED technology, offering higher brightness, better contrast, and seamless visuals without bezels compared to traditional LCD screens.
Yes, its high brightness ensures clear visibility even under strong ambient lighting conditions.
Yes, thanks to its modular structure, multiple LED Totems can be combined to create larger video walls.
Content can be easily updated and managed remotely via Wi-Fi using the integrated Android system.
No, the LED Totem comes with a built-in Android system, eliminating the need for external devices.
