With Shelf Displays, Menureen offers shelf-edge displays for product and promotional information along retail shelving. The listed screen sizes are 23.1″, 35″, 46.6″.
Plan the screen position around viewing distance, available space and the information people need to read. Compare the technical specifications before selecting a configuration.
Explore In-Store Digital Displays for related information.
A standard display format may not fit a narrow shelf edge or the space above a counter. Printed strips also need replacing when product information or offers change.
A narrow display format places product information and short promotions close to the relevant item. Design content for the actual aspect ratio instead of shrinking a conventional poster into the space.
Highlight a product group, a short offer or directional information beside the point of choice. Check mounting clearance, sightlines and text size for the chosen display.
Highlight products at the point of purchase.

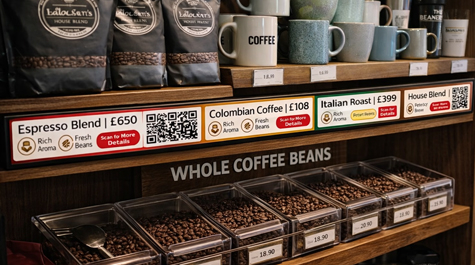

Display menus, pricing, and daily offers.

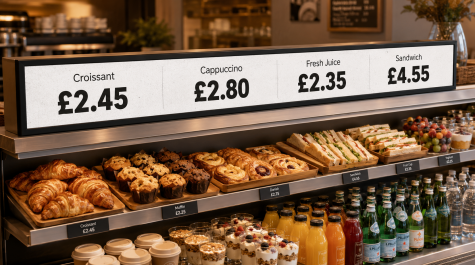

Enhance, hotel displays with clear digital pricing, fresh menu updates, and attractive product presentation.
Clear visibility from every direction.
Flexible and easy content management.
Designed for continuous commercial use.
Compare models and choose the best fit for your space.
| Feature | 23.1" Shelf Display | 35" Shelf Display | 46.6" Shelf Display |
|---|---|---|---|
| Panel | |||
| Panel Size | 23.1" Stretch Panel | 35" Stretch Panel | 46.6" Stretch Panel |
| Resolution | 1920 × 156 | 2880 × 156 | 3840 × 120 |
| Active Display Area (mm) | 585.6(H) × 46.19(V) | 878.4(H) × 48.19(V) | 1163.66(H) × 36.99(V) |
| Brightness (Typ., cd/m²) | 400 | 400 | 500 |
| Contrast Ratio | 3000:1 | 3000:1 | 3000:1 |
| Viewing Angle (H × V) | 89/89/89/89 (L/R/U/D) | 89/89/89/89 (L/R/U/D) | 89/89/89/89 (L/R/U/D) |
| Color Depth | 16.7M | 16.7M | 16.7M |
| System | |||
| CPU | Quad Core | Quad Core | Quad Core |
| RAM | 1GB | 2GB | 2GB |
| Internal Storage | 8GB | 8GB | 8GB |
| Operating System | Android OS | Android OS | Android OS |
| Network | |||
| WiFi | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| Ethernet | 100M/1000M | 100M/1000M | 100M/1000M |
| Bluetooth | Bluetooth 4.0 | Bluetooth 4.0 | Bluetooth 4.0 |
| Interface | |||
| USB Host | USB 2.0 (micro) | USB 2.0 (micro) | USB 2.0 (micro) |
| USB OTG | USB OTG | USB OTG | USB OTG |
| SD Card Slot | SD/MMC Card Slot | SD/MMC Card Slot | SD/MMC Card Slot |
| RJ45 | Ethernet | Ethernet | Ethernet |
| Media | |||
| Video Format | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV |
| Photo | jpeg, bmp etc. | jpeg, bmp etc. | jpeg, bmp etc. |
| Language | Multi Language | Multi Language | Multi Language |
| Power | |||
| Power Input | DC Input | DC Input | DC Input |
| Power Consumption (W) | 20 | 25 | 40 |
| Adapter | Adapter, 12V-5A | Adapter, 12V-5A | Adapter, 12V-5A |
| Dimensions | |||
| Product Dimensions (W × H × D mm) | 598 × 61 × 26 | 896 × 65 × 29 | 1264 × 53 × 28 |
| Package Dimensions (mm) | 725 × 150 × 190 | 1050 × 150 × 186 | 1350 × 150 × 160 |
| Product Weight (kg) | 1 | 1.2 | 2 |
| Package Weight (kg) | 2 | 2.5 | 3 |
| VESA | Wall Mounted | Wall Mounted | Wall Mounted |
| Operating Conditions | |||
| Operation | 7/24 | 7/24 | 7/24 |
| Operating Temperature | 6~50°C (Storage: -20~60°C) | 9~50°C (Storage: -20~60°C) | 6~50°C (Storage: -20~60°C) |
| Humidity | 19~65% | 10~65% | 10~65% |
| Package Contents | |||
| Included Items | Easy Installation Guide, Warranty Document, Power Cable | Easy Installation Guide, Warranty Document, Power Cable | Easy Installation Guide, Warranty Document, Power Cable |
Common questions about Shelf Display features and usage
It is ideal for retail shelves, cafés, supermarkets, and checkout areas.
Remote updates depend on the connected content-management system, player and network setup. Confirm compatibility and the publishing workflow for the selected configuration; update timing also depends on connectivity.
Yes, the high-brightness, anti-glare screen ensures clear visibility.
Check the operating-hours rating for the exact model and configuration. Continuous operation also requires suitable ventilation, power and installation conditions; a commercial display description alone does not establish a 24/7 rating.
Yes, its compact design allows quick and simple installation.
